8 Different Types of Check Valves and Applications

8 Different Types of Check Valves and Applications

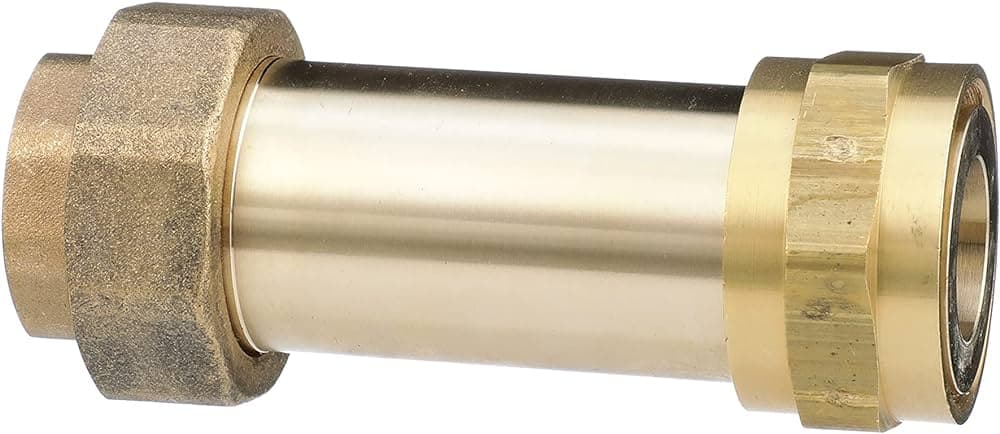

The check valve is the unsung hero in any plumbing system that keeps things running smoothly. These small but mighty components ensure that water or gas flows in one direction, preventing backflow that could lead to costly or dangerous issues.

Our expert technicians are here for youSchedule Online Today

While it might seem like a simple piece, there are various types of check valves, each designed for specific needs and applications. In this guide, we will walk you through eight different types of check valves, helping you understand their unique functions and where they are most effectively used.

Types of Backflow Valves and Ways to Choose

The significance of backflow valves cannot be overstated in the intricate domain of fluid control systems. These specialized valves serve as a protective barrier against the undesirable reversal of fluid flow, thereby ensuring the integrity and safety of the entire system.

The choice of a backflow valve is not merely a matter of plug-and-play, it demands a nuanced understanding of the operational requirements of your system, fluid dynamics, and potential risk factors.

1. Lift Check Valves

Among check valves, the lift check valve stands as a paragon of efficiency and versatility, particularly in high-pressure environments. Characterized by a guided disc and a seating arrangement akin to globe valves, this valve type offers three distinct body patterns—horizontal, angle, and vertical.

The disc, often shaped as a piston or ball, is lifted by the upward flow, allowing fluid passage. Gravity and backflow synergistically force the disc to seal the seat upon flow cessation or reversal, thereby preventing backflow. Notably, lift check valves are prevalent in high-rise buildings, industrial plants, and water treatment facilities, offering a blend of reliability and economic viability.

2. Piston Check Valves

The piston check valve, also known as a plug check valve, epitomizes precision control in fluid management systems. This valve type offers an extra layer of security through an optional spring mechanism, operating through the linear motion of a piston within the valve chamber.

The spring ensures the valve remains closed when not actively engaged, minimizing the risk of accidental backflow. The piston’s design and the spring’s tension are meticulously calibrated to respond to specific flow pressures, making this valve type highly adaptable.

Piston check valves are commonly employed in systems requiring rapid flow changes and offer a robust solution for maintaining unidirectional fluid flow.

3. Ball Check Valves

The ball check valve operates on a principle of elegant simplicity, utilizing gravity as its primary control mechanism. A ball is strategically positioned within the valve chamber to obstruct or permit fluid flow. The ball is lifted when the system pressure escalates, allowing unidirectional flow.

Conversely, gravity pulls the ball back into its seat as the pressure diminishes, effectively sealing the system against reverse flow. This type of check valve offers a broad spectrum of material and style options, making it versatile for various applications. Renowned for its low maintenance and high reliability, the ball check valve is indispensable in fluid control systems.

Read More: How to Find Polybutylene Pipes in Your House

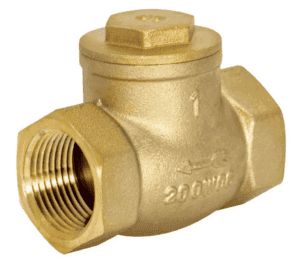

4. Swing Check Valves

The swing check valve serves as an example of automated efficiency in fluid control systems. This valve type, employing an internal disc, capitalizes on fluid pressure to regulate flow.

As fluid courses through the system in the intended direction, the pressure propels the disc to open, facilitating flow. Conversely, when the pressure wanes, the disc swings back into its closed position, thwarting any potential backflow.

Particularly well-suited for applications with high solid content and fewer on/off cycles, swing check valves offer a cost-effective solution without compromising performance. Their automatic operation eliminates the need for external power, making them an eco-conscious choice.

5. Butterfly Check Valves

The butterfly check valve, often called a dual-plate or split-disc check valve, is a marvel of engineering ingenuity. Designed with two semi-circular discs that converge at the centerline during forward flow, this type of backflow valve offers an unparalleled blend of lightweight construction and compact design.

Ideal for low-pressure liquid and gas systems, its unique structure reduces installation and maintenance costs, making it a financially savvy choice. The dual plates of the valve swiftly open to allow fluid passage and snap shut upon flow reversal, ensuring a secure seal. With its space-efficient design and cost-effectiveness, the butterfly check valve is a go-to for modern fluid control systems.

6. Stop Check Valves

The stop check valve is a hybrid marvel, ingeniously combining the features of a globe valve and a check valve into a single, multifunctional unit. This valve can serve as a flow regulator or backflow prevention mechanism, offering unparalleled versatility.

Unique to the stop check valve is its external control mechanism, which allows for manual operation. It is popular in high-stakes environments like power plants and boiler systems. Its dual functionality enables it to adapt to varying operational needs, providing both isolation and backflow prevention. The stop check valve is an unmatched solution for those seeking a versatile, reliable, and highly controllable valve option.

Read More: Helpful Electrical Outlet Spacing Tips

7. Spring-Loaded Check Valves

The spring-loaded check valve is a paragon of precision engineering designed to preemptively thwart backflow and mitigate hydraulic shock, commonly known as water hammer.

This valve type incorporates a spring mechanism that assists in its rapid closure, ensuring the valve shuts before fluid flow reverses. The spring-loaded design allows for installation in any orientation, offering unparalleled flexibility.

Whether in-line or Y-shaped configuration, the valve’s spring ensures a secure seal, making it an indispensable asset in fluid process systems. For those searching for a valve that offers both reliability and adaptability, the spring-loaded check valve is the epitome of fluid control excellence.

8. Wafer Check Valves

The wafer check valve is a compact powerhouse, ingeniously designed with two half-circle disks that fold together to allow forward flow and retract to prevent backflow. This valve’s slim profile makes it an ideal choice for systems where space is premium.

Despite its minimalistic design, the wafer check valve offers robust performance, operating efficiently even at low-pressure differentials. Its unique construction allows it to fit snugly between a set of flanges, providing a secure seal without the bulk of traditional check valves. The wafer check valve is a prime choice if you seek a streamlined yet highly effective valve solution.
